Detector Readout Systems

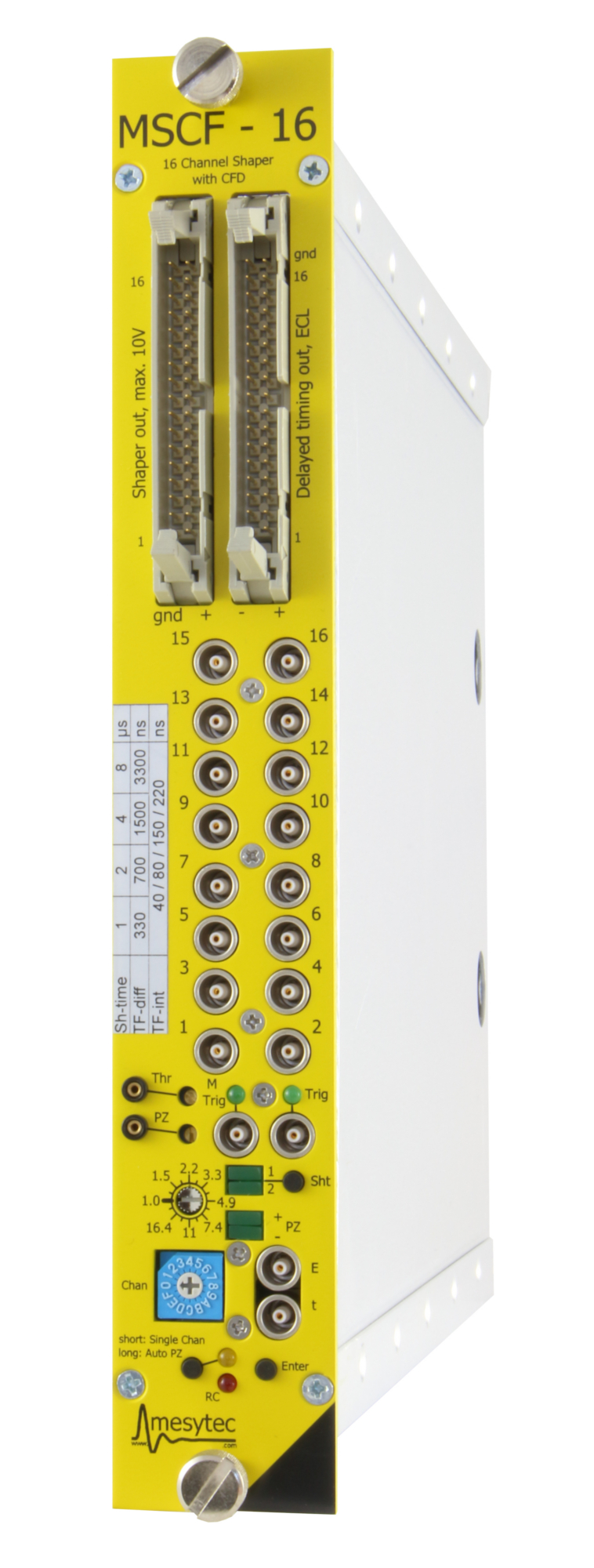

mesytec MSCF-16-LN is an ultra low noise spectroscopy amplifier with active baseline restorer. It provides timing filter amplifiers with constant fraction discriminators and a multiplicity trigger. It is completely revised to meet the requirement of high quality germanium detector readout.
Features
  • 16 channel NIM module, low power design
  • Shaping amplifiers with active baseline restorer
  • Timing filter amplifiers
  • CF discriminators (opt.: leading edge)
  • ECL timing output with digital delay of 800 ns
  • Trigger output
  • Multiplicity trigger
  • Remote control of discriminator thresholds, shaping time, gains and PZ
  • 4 shaping times
  • Gain adjustable from 1 to 600 (optional 2000)
  • Lemo-00 inputs
  • Low noise: 4 uVrms (gain = 100 and shaping time = 8 us)
  • Low integral non linearity
  • Fully controllable via front panel
  • Remote control via USB and mesytec control bus
  • 4 selected timing filter integration times
  • ECL timing delay can be switched off
